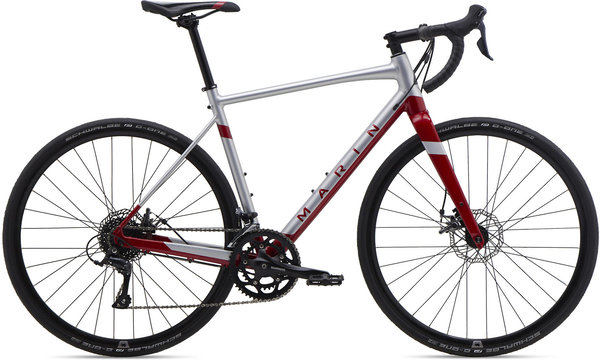

Marin Gestalt 1
This item is currently not available.
Details
The Gestalt is for the drop bar rider that doesn't want to stick to pavement and can't help but get dirty no matter the route. Long distance commuters and all-weather riders will appreciate features like fender and rack mounts, sure stopping disc brakes, and the comfort larger volume tires provide on unexpected detours.
- Series 3 Beyond Road alloy frame
- Full carbon fork
- Marin aluminum double-wall rims, tubeless-compatible
- Shimano Sora 2x9 drivetrain
- Tektro cable disc brakes
Specs
| Frame | Series 3 Beyond Road, 6061 Aluminum, Relieved Tapered Head Tube and BB, InternalCable Routing, Flat-Mount Disc SpecificForged Dropouts |
|---|---|
| Fork | Marin Full Carbon w/ Taper Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Headset | FSA Orbit IS, Sealed Cartridge Bearings, 11/8”x11/2” |
| Axles | Thru |
| Wheels/Rims | Marin Aluminum Double Wall, 19mmInner, 24mm Tall, Disc Specific, Tubeless Compatible |
| Hubs | Forged Aluminum Alloy, 6-Bolt Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Tires | WTB, Exposure Comp, 700Cx32, Wire Bead |
| Crankset | Shimano R345 Octalink Compact |
| Chainrings | 50/34T |
| Bottom Bracket | Shimano Octalink V2 Cartridge |
| Chain | KMC X9 |
| Front Derailleur | Shimano Sora |
| Rear Derailleur | Shimano Sora 9-Speed |
| Cassette/Rear Cogs | SunRace 9-Speed, 11-32T |
| Shifters | Shimano Sora 2x9-Speed |
| Handlebars | Marin Butted Alloy, Compact 12º Flared Drop |
| Tape/Grips | Marin Perforated Tape |
| Stem | Marin 3D Forged Alloy |
| Brake Levers | Shimano w/ Integrated Shifters |
| Brakes | Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor |
| Pedals | Commute Platform |
| Saddle | Marin Beyond Road Concept |
| Seat Post | Marin Alloy |
* Subject to change without notice.
Videos
2018 Marin Beyond Road
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Satin Silver/Red / 50cm | 841323068069 | 728159001 |
| Satin Silver/Red / 52cm | 841323068076 | 728159002 |
| Satin Silver/Red / 54cm | 841323068083 | 728159003 |
| Satin Silver/Red / 56cm | 841323068090 | 728159004 |
| Satin Silver/Red / 58cm | 841323068106 | 728159005 |
| Satin Silver/Red / 60cm | 841323068120 | 728159006 |
